Grillo Climber 10.22 AWD
Printer-friendly version
Engine:
656cc Briggs & Stratton V Twin
Cutting Width:
93cm
Cutting Height:
35-135mm
Height Adjustment:
Manual
Special offer price:
P.O.A

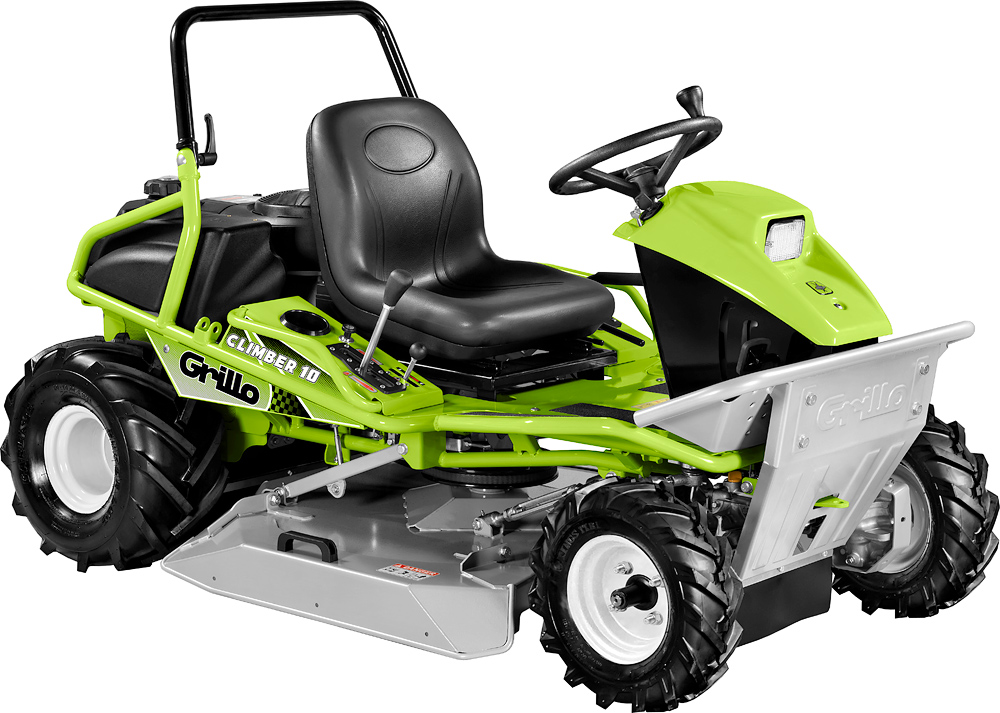

Grillo Climber 10.22 AWD Ride on Brushcutter
Commercial ride on brushcutter
EngineBriggs & Stratton 7220 Professional Series V-Twin
Start electric, with 12 V battery
Supply fuel
Displacement 656 cc, 2 Cylinders
Power 18 HP (13.2 kW) - Gross power 22 HP
Air cooled
Fuel tank capacity13 L
Gearbox4-wheel-drive hydrostatic transmissionClutchElectromagnetic clutch with P.T.O and blade brake
.

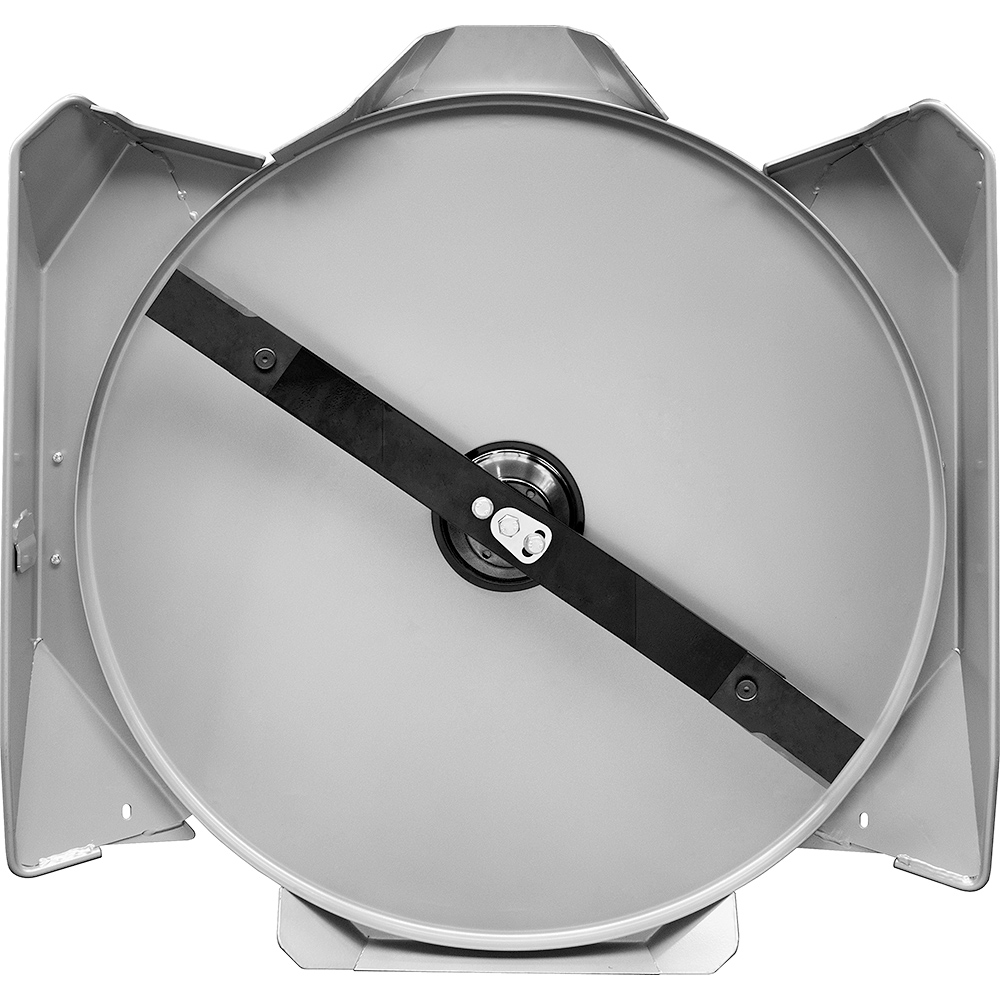

Cutter deckSide and rear dischargeCutting configuration1 rotating bladeCutting width93 cmCutting heightFrom 3,5 cm to 13,5 cm with continuous adjustmentPeripheral blade speed83 m/1"
Differential lockingOn the rear axle, with pedal engagement.
Front tyres4.00-8 TRACTOR, puncture proof treated as standard feature.Rear tyres20×10.00-8 TRACTORSpeedContinuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h.Inner turning radius70 cmSeatSprung and adjustable comfort seat, equipped with roll-bar.Parking brakeOn the rear wheels with lever engagement
Mowing capacity per hour (indicative)7200 m^2/hStandard featuresTow bar and front LED headlight
Length206 cmWidth103 cmHeight118,5 cm
Weight345 kg
